PGP610 PGM610 Gear Pump&Motor
PGP610 PGM610 Gear Pump&Motor


PGP610 PGM610 Hydraulic Gear Pump & Motor | 100% Parker Compatible Replacement

Displacemnet 7.0 to 32.0 cm³/rev
Max. Pressure Continuous up to 275 bar(4,000 psi)
Max. Speed Up to 3,300 RPM
Volumetric Efficiency Up to 98%
Material High-strength extruded aluminum
Interchangeability 100% Drop-in replacement for Parker
Mounting Options SAE A/B, European 2-bolt/4-bolt, and Rectangular
Shaft Types Splined, Tapered, and Straight Keyed available
Configurations Single, Tandem (Double), or Triple units
Applications Excavators, Forklifts, and Industrial Power Units
Send Inquiry

Our PGP610 PGM 610 series high-pressure aluminum gear pump and motor is a premium, 100% drop-in replacement for original Parker and Commercial units, precision-engineered to deliver OEM-grade performance in demanding mobile and industrial applications. Featuring a high-strength extruded aluminum body with a pressure-balanced design, it supports a wide displacement range from 7.0cc to 32.0cc and operates reliably at continuous pressures up to 275 bar (4,000 psi) and speeds up to 3,500 RPM. This modular series offers exceptional 95% volumetric efficiency and is fully customizable with SAE A/B or European flanges, as well as Splined, Tapered, or Keyed shafts, making it the ideal, zero-modification solution for excavators, forklifts, and aerial lifts looking to minimize downtime and costs.

PGP610 PGM610 Key Performance & Technical Specification:

  • Displacement Range: 7.0 cc/rev to 32.0 cc/rev.

  • Operating Pressure: Continuous duty up to 275 bar (4,000 psi).

  • Maximum Speed: Reliable operation up to 3,300 RPM.

  • Efficiency: Advanced pressure-balanced design ensures >95% volumetric efficiency.

  • Versatile Mounting: Available in standard SAE A/B, European, and Rectangular flanges.

  • Custom Shafts: Options include Splined, Straight Keyed, and Tapered (1:8) configurations.

  • Modular Design: Supports Single, Tandem, or Triple pump assemblies to meet complex flow requirements.

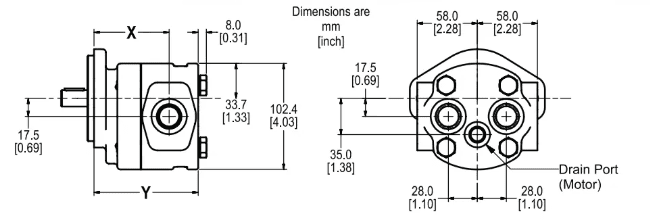

PGP610 PGM610 Standard Displacement Single Unit:

Pump Displacement Code 0070 0100 0140 0160 0180 0210 0230 0260 0280 0320
cc/rev 7 10 14 16 18 21 23 26 28 32
in3/rev 0.43 0.61 0.85 0.98 1.1 1.28 1.4 1.59 1.71 1.95
Continuous Pressure bar 275 275 275 275 265 245 235 215 200 175
psi 3989 3989 3989 3989 3843 3553 3408 3118 2901 2538
Intermittent Pressure bar 300 300 300 300 290 270 260 240 220 175
psi 4351 4351 4351 4351 4206 3916 3771 3480 3190 2538
Port Location “X” mm 71 75.5 75 78 81 81.5 83.5 81 84 90.5
inch 2.8 2.97 2.95 3.07 3.19 3.21 3.29 3.19 3.31 3.56
Overall Length “Y” mm 99 103.5 109.5 112.5 115.5 120 122 123.5 126.5 135
inch 3.9 4.07 4.31 4.43 4.55 4.72 4.8 4.86 4.98 5.31
Weight* kg 5.9 6.2 6.5 6.8 6.8 7.1 7.2 7.3 7.5 8
lb 13.1 13.6 14.4 14.9 15 15.6 15.9 16.2 16.5 17.6

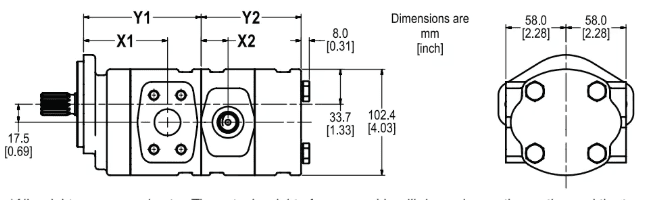

PGP610 PGM610 Standard Displacement Tandem Unit:

Pump Displacement Code 0070 0100 0140 0160 0180 0210 0230 0260 0280 0320
cc/rev 7 10 14 16 18 21 23 26 28 32
in3/rev 0.43 0.61 0.85 0.98 1.1 1.28 1.4 1.59 1.71 1.95
Front Port Location “X1” mm 71 75.5 75 78 81 81.5 83.5 81 84 90.5
inch 2.8 2.97 2.95 3.07 3.19 3.21 3.29 3.19 3.31 3.56
Front Overall Length “Y1” mm 96 100.5 106.5 109.5 112.5 117 119 120.5 123.5 132.5
inch 3.78 3.96 4.19 4.31 4.43 4.61 4.69 4.74 4.86 5.22
Rear Port Location “X2” mm 25 25 31.5 31.5 31.5 35.5 35.5 39.5 39.5 42
inch 0.98 0.98 1.24 1.24 1.24 1.4 1.4 1.56 1.56 1.65
Rear Overall Length “Y2” mm 95.5 100 106 109 112 116.5 118.5 120 123 132
inch 3.76 3.94 4.17 4.29 4.41 4.59 4.67 4.72 4.84 5.2
Weight – Front Section* kg 5.6 5.9 6.2 6.4 6.5 6.8 6.9 7 7.2 7.7
lb 12.4 12.9 13.7 14.2 14.3 14.9 15.2 15.5 15.8 17
Weight – Rear Section* kg 5.7 5.9 6.3 6.5 6.5 6.8 7 7.1 7.2 7.8
lb 12.5 13 13.8 14.3 14.4 15 15.3 15.6 15.9 17.2

PGP610 Typical Outlet Flow and Input Power 120°F(50℃),ISO VG32 Fluid
Speed (rpm) units Displacement/Maximum Allowable Continuous Pressure
cc 7 10 14 16 18 21 23 26 28 32
in3 0.43 0.61 0.85 0.98 1.10  1.28 1.40  1.59 1.71 1.95
bar 275 275 275 275 265 245 235 215 200 175
900 psi 3989 3989 3989 3989 3843 3553 3408 3118 2901 2538
lpm 6 8.5 11.9 13.6 15.3 17.9 19.6 22.1 23.8 27.2
gpm 1.6 2.2 3.1 3.6 4 4.7 5.2 5.8 6.3 7.2
kw 3.1 4.4 6.2 7.1 7.4 7.8 7.8 7.8 7.7 9
hp 4.2 5.9 8.3 9.5 9.9 10.4 10.4 10.4 10.3 12.1
1200 lpm 8 11.3 15.9 18.1 20.4 23.8 26.1 29.5 31.8 36.3
gpm 2.1 3 4.2 4.8 5.4 6.3 6.9 7.8 8.4 9.6
kw 4.1 5.9 8.3 9.5 9.9 10.4 10.4 10.3 10.2 12
hp 5.6 7.9 11.1 12.7 13.2 13.9 13.9 13.9 13.7 16.1
1500 lpm 10 14.3 20.1 22.9 25.8 30.1 32.9 37.2 40.1 45.8
gpm 2.6 3.8 5.3 6.1 6.8 7.9 8.7 9.8 10.6 12.1
kw 5.2 7.5 10.5 12 12.5 13.1 13.1 13.1 12.9 15.2
hp 7 10 14 16 16.7 17.6 17.6 17.5 17.3 20.4
1800 lpm 12.1 17.3 24.2 27.6 31.1 36.3 39.7 44.9 48.4 55.3
gpm 3.2 4.6 6.4 7.3 8.2 9.6 10.5 11.9 12.8 14.6
kw 6.3 9 12.6 14.3 15 15.8 15.8 15.7 15.5 18.3
hp 8.4 12 16.8 19.2 20.1 21.1 21.1 21 20.8 24.5
2100 lpm 14.2 20.3 28.4 32.4 36.5 42.6 46.6 52.7 56.7 64.8
gpm 3.7 5.4 7.5 8.6 9.6 11.2 12.3 13.9 15 17.1
kw 7.4 10.6 14.8 16.9 17.7 18.6 18.6 18.5 18.3 21.5
hp 9.9 14.2 19.9 22.7 23.7 24.9 24.9 24.8 24.6 28.9
2400 lpm 16.3 23.3 32.6 37.2 41.9 48.9 53.5 60.5 65.2 74.5
gpm 4.3 6.1 8.6 9.8 11.1 12.9 14.1 16 17.2 19.7
kw 8.6 12.2 17.1 19.6 20.4 21.5 21.5 21.4 21.2 24.9
hp 11.5 16.4 22.9 26.2 27.4 28.8 28.8 28.7 28.42 33.4
2700 lpm 18.3 26.2 36.7 41.9 47.1 55 60.2 68.1 73.3 83.8
gpm 4.8 6.9 9.7 11.1 12.5 14.5 15.9 18 19.4 22.1
kw 9.7 13.9 19.5 22.2 23.2 24.4 24.4 24.3 24.1 28.3
hp 13.1 18.6 26.1 29.8 31.1 32.7 32.7 32.6 32.3 38
3000 lpm 20.4 29.1 40.7 46.6 52.4 61.1 66.9 75.7 81.5 93.1
gpm 5.4 7.7 10.8 12.3 13.8 16.1 17.7 20 21.5 24.6
kw 10.9 15.6 21.9 25 26.1 27.4 27.4 27.3 27 31.8
hp 14.7 21 29.3 33.5 35 36.8 36.8 36.6 36.3 42.7
3300 lpm 22.3 31.8 44.6 51 57.3 66.9 73.2 82.8 89.2 101.9
gpm 5.9 8.4 11.8 13.5 15.1 17.7 19.3 21.9 23.6 26.9
kw 12.2 17.4 24.3 27.8 29 30.5 30.5 30.4 30.1 35.4
hp 16.3 23.3 32.6 37.3 38.9 40.9 40.9 40.8 40.4 47.5

Our PGP610 PGM 610 series is designed with a high degree of modularity, allowing for precise configurations to match your specific hydraulic requirements. Whether you need a single pump or a complex multi-stage unit, we offer a wide range of factory-direct customization options to ensure 100% compatibility with your existing equipment.

Customization Item Available Options
Displacement 7, 10, 14, 16, 19, 23, 28, 32 cm3/rev
Unit Type Single Pump
Tandem Pump
Hydraulic Motor
Rotation Clockwise (CW)
Counter-Clockwise (CCW)
Bi-directional
Shaft End Splined (SAE A/B)
Straight Keyed
Tapered (1:8)
Mounting Flange SAE A
SAE B
European 2-Bolt/4-Bolt
Rectangular
Porting SAE Flange
BSPP
UNF
Metric Threads
Rear Cover Standard
with Relief Valve
with Priority Valve
Seal Material NBR (Standard)
FKM (High Temperature/Viton)

With our extensive inventory of shafts, flanges, and displacement sections, we can quickly assemble and test your PGP610 unit to meet OEM standards. This flexibility ensures reduced downtime and a perfect fit for excavators, forklifts, and industrial power units.

Need help with the right specifications?

Simply send us your current part number or a photo of your pump’s nameplate, and our technical team will provide a guaranteed 1:1 match quote within 24 hours.

We understand that in the construction and mining industries, downtime is lost revenue. That’s why our PGP610 PGM610 series is built not just as a cheaper alternative, but as a reliable, high-performance solution that you can trust.

1. 100% Precision Matching (Zero-Risk Installation)

Every pump and motor we produce undergoes a strict 1:1 dimensional audit against OEM specifications. We guarantee that our units will bolt directly onto your machine with zero modifications required, ensuring your equipment is back to work immediately.

2. Rigorous Factory Testing (OEM Standards)

Quality is not an accident. Before leaving our ISO-certified facility, each unit undergoes:

  • Performance Testing: 100% pressure and flow testing to ensure it meets or exceeds original rated specs.

  • Durability Check: High-pressure cycling to guarantee housing and seal integrity under extreme conditions.

  • Zero-Leakage Assurance: Every unit is inspected for internal and external leakage to prevent onsite failures.

3. Comprehensive 12-Month Warranty

We stand behind our craftsmanship. All PGP/PGM 610 series products come with a 12-month comprehensive warranty. If any manufacturing defect occurs during the warranty period, we provide a fast replacement or repair service to minimize your operational impact.

4. Expert Technical Support & Fast Logistics

You are not just buying a part; you are gaining a technical partner. Our engineers are available to help you identify the correct configuration from a simple photo of your nameplate. Combined with our deep inventory, we offer rapid global shipping to ensure you get the parts you need, exactly when you need them.

Hydraulic Gear Pump – FAQ

Is the PGP610 pump a direct drop-in replacement for my original Parker unit?

Yes, our PGP610 series is engineered as a 100% interchangeable replacement for original Parker and Commercial units. It follows the exact OEM dimensions for mounting flanges (SAE A/B or European), shaft ends (Splined/Keyed), and porting, requiring zero modifications for installation.

How do I identify the correct displacement for my PGP610 pump?

You can find the displacement code on the pump’s nameplate (e.g., 0140 for 14cc, 0230 for 23cc). If the tag is missing, measure the width of the pump gear housing (the aluminum center section). Our technical team can help you calculate the exact cc/rev based on your measurements and machine model.

What is the maximum continuous pressure rating for the PGP610 series?

The PGP610 series is designed for high-pressure performance, supporting a maximum continuous pressure of up to 250 bar (3,625 psi) and peak pressures up to 275 bar. This makes it ideal for demanding hydraulic systems in excavators and industrial power units.

Can I combine multiple PGP610 units into a tandem or triple pump?

Absolutely. The modular design of the PGP610 allows for tandem (double) or triple pump configurations. We can customize different displacement sections within a single assembly to drive multiple hydraulic circuits simultaneously from one power source

What are the benefits of choosing an aftermarket PGP610 pump over the original?

  • Our aftermarket PGP610 pumps offer OEM-grade performance at a significantly lower cost. By sourcing factory-direct, you benefit from shorter lead times, 100% pressure-tested reliability, and a 12-month comprehensive warranty, ensuring your machinery returns to work quickly without the brand premium.

Can a PGP610 pump be used as a PGM610 motor?

While they share the same external dimensions, a PGM610 hydraulic motor is specifically designed with internal features like a dedicated drain port (case drain) and high-pressure shaft seals to handle backpressure. Using a standard pump as a motor without a drain port will cause the shaft seal to fail. We provide purpose-built PGM610 motors for reliable bi-directional or high-speed operation.

Does the PGM610 motor support bi-directional rotation?

Yes, our PGM610 motors are available in bi-directional configurations, allowing them to drive equipment in both clockwise and counter-clockwise directions. They feature a balanced design to maintain consistent torque and speed (up to 3,300 RPM) regardless of the rotation direction.

What are the typical applications for the PGM610 hydraulic motor?

The compact yet powerful PGM610 is ideal for high-speed, high-pressure applications such as conveyor drives, cooling fans, salt spreaders, and small winch systems. Its high power-to-weight ratio and over 95% mechanical efficiency make it a top choice for mobile machinery and industrial power units.

How do I choose the right displacement for my PGM610 motor?

Choosing the correct displacement (from 7cc to 32cc) depends on your system’s available flow (LPM/GPM) and the required output torque/speed. A larger displacement provides more torque but lower speed for the same flow. If you are unsure, provide us with your system’s pressure and flow data, and we will calculate the perfect PGM610 match for you.
