| Pump Type | Heavy Duty,Cast Iron,External Gear |
| Displacement Range | Min 44.3cc/rev, Max 147.5cc/rev |
| Pressure Rating | Min 207 bar, Max 241 bar |
| Speed Range | Max 2400 RPM |
| Material | Cast Iron |
| Mounting Type | SAE standard flanges |
| Rotation | Clockwise,Counter Clockwise,Double |
| Key Features | High efficiency |
| OEM Manufactured Compatibility | Parker |
| MOQ | 10 PCS |
Our PGP365 and PGM365 series offer a high-efficiency 100% drop-in replacement for original Parker cast iron gear pumps and motors, engineered for heavy-duty hydraulic systems. Designed for maximum durability, these units support operating pressures up to 3,500 PSI (241 bar) and displacements ranging from 44.3 to 147.5 cm³/rev (2.70 to 9.00 in3/rev), with speeds reaching 3,000 RPM. This OEM-interchangeable series features a rugged three-piece cast iron construction, ensuring peak volumetric efficiency across SAE B/C 2-bolt or 4-bolt mounting configurations. Whether you need a single, tandem, or triple section setup with splined or keyed shafts, our aftermarket PGP/PGM365 solutions provide a reliable, cost-effective alternative that guarantees seamless interoperability and reduced machine downtime.
PGP365 PGM350 Key Performance & Technical Specification:
Max Pressure: Up to 3,500 PSI (241 bar) continuous.
Displacement: 44.3 to 147.5 cm³/rev (2.70 to 9.00 in³/rev).
Max Speed: Up to 2,400 RPM (Pumps) / 3,000 RPM (Motors).
Construction: Heavy-duty Three-Piece Cast Iron for maximum efficiency.
Compatibility: Fully interchangeable with all standard Parker 365 series configurations.
| PGP365 PGM365 Frame Size | 07 | 10 | 12 | 15 | 17 | 20 | 22 | 25 | |
| Displacement | cm3/rev | 44.3 | 59.0 | 73.8 | 88.5 | 103.3 | 118 | 132.8 | 147.5 |
| in3/rev | 2.7 | 3.6 | 4.5 | 5.4 | 6.3 | 7.2 | 8.10 | 9 | |
| Max Continuous pressure | bar | 241 | 241 | 241 | 241 | 241 | 241 | 224 | 207 |
| psi | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 | 3250 | 3000 | |
| Max Speed | RPM | 2400 | 2400 | 2400 | 2400 | 2400 | 2400 | 2400 | 2400 |
| Approximate Weight | Lbs. | 53.5 | 56 | 58.5 | 61 | 63.5 | 66 | 68.5 | 71 |
| kg | 24.3 | 25.4 | 26.5 | 27.7 | 28.8 | 30 | 31.1 | 32.2 | |

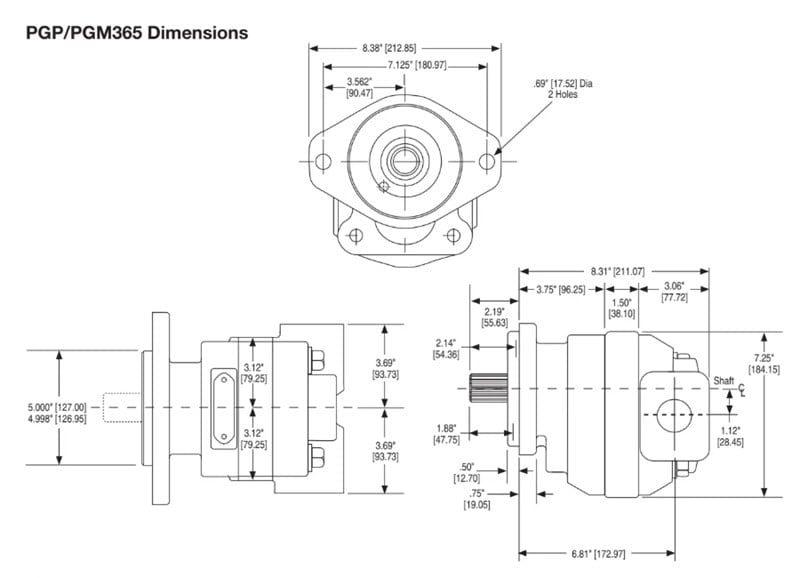

PGP365 PGM350 Dimensions:

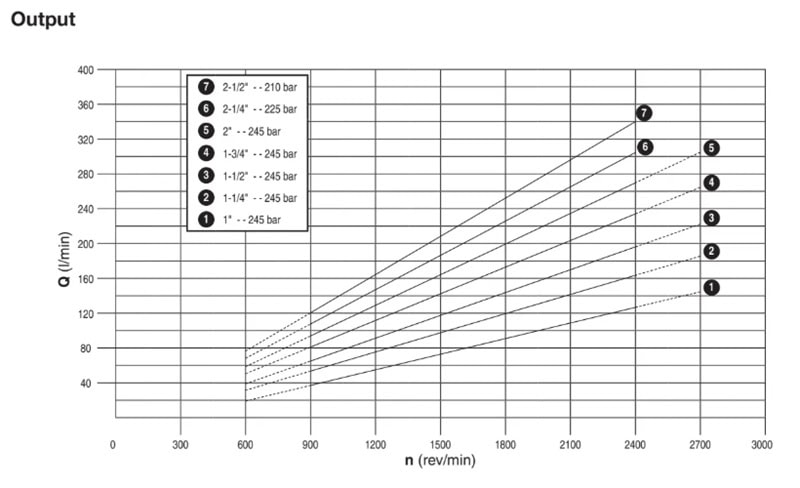

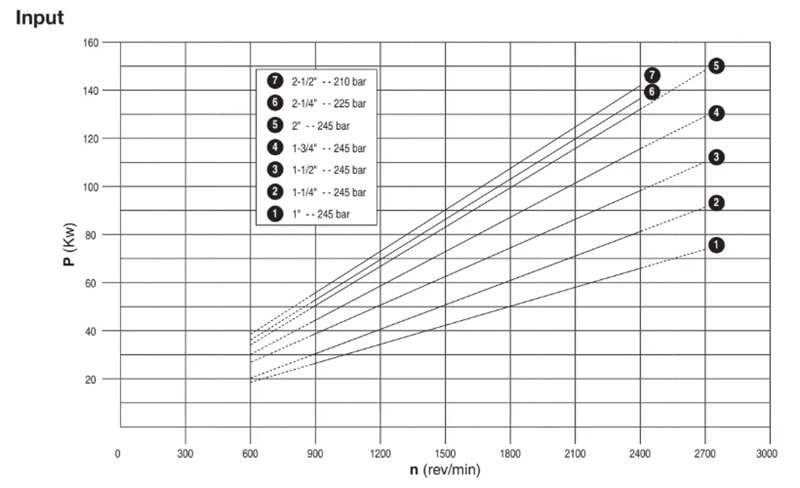

PGP365 PGM365 Gear Pump&Motor Performance Data:
| Customization Item | Available Options | Description |
| Unit Type | Single, Tandem, Multiple, Thru-Drive | Available as single units or multiple sections (tandem) with common or separate inlets. |
| Displacement (Gear Width) | 44.3 to 147.5 cm3/rev(2.70 to 9.00 in3/rev) | Determined by gear width: 0.75″, 1.00″, 1.25″, 1.50″, 1.75″, 2.00″, 2.25″, 2.50″. |
| Rotation | CW (Clockwise), CCW (Counter-Clockwise), Bi-rotational | Direction of rotation viewed from the drive shaft end. |
| Shaft Type | SAE Splined, Keyed, or Industry Specific | Common options include SAE “C” Spline/Keyed and SAE “B” or “BB” Spline/Keyed. |
| Mounting Flange | SAE 2-Bolt or 4-Bolt | SAE B 4-bolt/SAE B 2-bolt/SAE C 4-bolt/SAE C 2-bolt |
| Porting Type | SAE Split Flange, OD Tube (ORB), BSPP, Metric Split Flange | Available in various sizes (e.g., 1″, 1-1/4″, 1-1/2″, 2″) for both side and rear locations. |
| Porting Location | Side Ported, Rear Ported | Standard gear housings are typically side-ported; port end covers can be rear-ported. |
| Shaft Seals | NBR (Standard), FPM (Viton/FKM) | Standard NBR for mineral oils; FPM for high-temperature or fire-resistant fluids. |
| Bearing Options | With or Without Outboard Bearing | Outboard bearings (O.B. bearing) are used for applications with radial shaft loads. |
| Control / Valve Options | Relief, Load Sense, Priority, Unloading | Extensive valve options integrated into the covers for specific hydraulic circuit needs |
| Fluid Compatibility | Mineral Oil,Water-Glycol(HFC),Phosphate Esters(HFD) | Configurable for fire-resistant fluids with appropriate seal and clearance options. |
Don’t let a broken pump halt your project. Send us your original Parker part number (e.g., PGP365A…) or a photo of the nameplate, and our technical team will provide a precise replacement match and pricing within 24 hours.
We understand that machine downtime is costly. That’s why our PGP365/PGM365 replacements are built to provide the same reliability as the original, backed by a comprehensive protection plan.
Every unit undergoes rigorous 100% dynamic testing before leaving our factory. We simulate real-world high-pressure conditions to ensure:
True Drop-in Replacement: Precision-machined to exact OEM tolerances—guaranteed to fit your existing hydraulic lines and mounts perfectly.
Full Power Output: Every pump and motor meets or exceeds original flow and pressure specifications.
Premium Materials: We use high-tensile strength cast iron and specialized heat-treated steel for gears and shafts to prevent premature wear.
Extended Life Cycle: Optimized seal kits (Buna-N or Viton) and high-load bearings ensure stable operation even in harsh construction and mining environments.
We stand behind our products with a 1-year limited warranty. If a manufacturing defect occurs within the first 12 months, we provide:
Rapid Replacement: Fast-track shipping for replacement units to get your machinery back to work immediately.
Technical Troubleshooting: Direct access to our hydraulic engineers for installation guidance and system diagnosis.
Stock Availability: We maintain a large inventory of 365 series components to ensure 24–72 hour dispatch.
Traceability: Each unit is laser-engraved with a unique serial number for lifetime tracking and support.
