Parker PGP315 PGM315 Replacement Parts | Hydraulic Gear Pump

Pump Type	Heavy-duty cast iron,external gear
Displacement Range	Min 10.2cc/rev, Max 40.6cc/rev
Pressure Rating	Min 17.2Mpa, Max 24.1Mpa
Speed Range	Min 400 RPM, Max 3000 RPM
Material	Cast Iron
Mounting Type	SAE standard flanges
Rotation	Clockwise,Counter Clockwise,Bi-Rotational
Key Features	High efficiency
OEM Manufactured Compatibility	Parker
MOQ	10 PCS

High-quality interchangeable components for Parker PGP315 gear pump and PGM315 gear motor, engineered to match OEM specifications for perfect fit, performance, and durability. Our replacement parts include seal kits, thrust plates, bushings, gears, end covers, and shaft assemblies—all built with rugged cast iron and precision-machined to withstand up to 3500 psi (241 bar) operating pressure. Designed for direct drop‑in installation, they restore volumetric efficiency, reduce downtime, and lower maintenance costs for industrial, mobile, and hydraulic power applications.

PGP315 Gear Pump Specification:

PGP315 Frame Size		05	07	10	12	15	17	20
Displacement	cm³/rev	10.2	15.2	20.3	25.4	30.5	35.6	40.6
Displacement	in³/rev	0.62	0.93	1.24	1.55	1.86	2.17	2.48
Max Continuous Pressure	bar	241	241	241	241	228	200	172
Max Continuous Pressure	psi	3500	3500	3500	3500	3300	2900	2500
Max Speed	RPM	3000	3000	3000	3000	3000	3000	3000
Approximate Weight	Lbs.	16	17	18	19	20	21	22
Approximate Weight	kg	7.2	7.7	8.2	8.6	9.1	9.5	10

PGM315 Gear Motor Specification:

PGM315 Frame Size		05	07	10	12	15	17	20
Displacement	cm³/rev	10.2	15.2	20.3	25.4	30.5	35.6	40.6
Displacement	in³/rev	0.62	0.93	1.24	1.55	1.86	2.17	2.48
Max Continuous Pressure	bar	241	241	241	241	228	200	172
Max Continuous Pressure	psi	3500	3500	3500	3500	3300	2900	2500
Max Speed	RPM	3000	3000	3000	3000	3000	3000	3000
Approximate Weight	Lbs.	16	17	18	19	20	21	22
Approximate Weight	kg	7.2	7.7	8.2	8.6	9.1	9.5	10

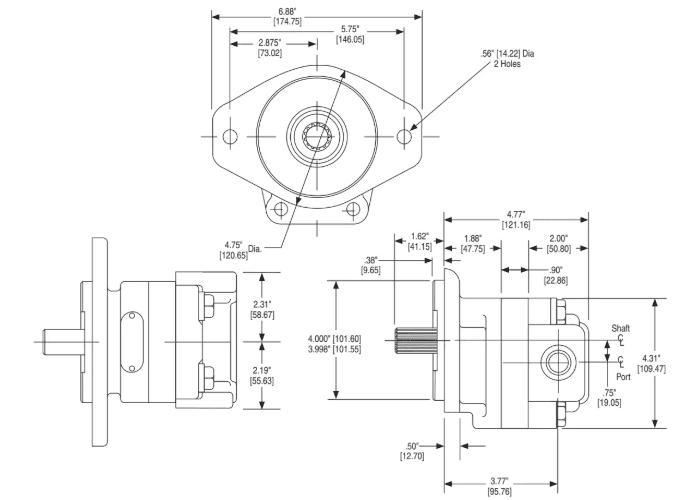

PGP/PGM315 Gear Pump&Motor Dimensions:

PGP315 Gear Pump Performance Data:

Speed RPM	Output Flow	Gear Widths
Speed RPM	Input Power	1/2″	3/4″	1″	1-1/4″	1-1/2″	1-3/4″	2″
900	GPM	2	3.2	4.4	5.5	6.7	7.9	9
	LPM	8	12	17	21	26	30	34
	HP	5	8	11	13	15	15	15
	kW	4	6	8	10	11	11	11
1200	GPM	2.8	4.4	6	7.6	9.2	10.7	12.2
	LPM	11	17	23	29	35	40	46
	HP	7	11	14	18	20	21	20
	kW	5	8	11	13	15	15	15
1500	GPM	3.6	5.6	7.7	9.6	11.6	13.5	15.4
	LPM	14	21	29	36	44	51	58
	HP	9	13	18	22	25	26	25
	kW	7	10	13	16	19	19	19
1800	GPM	4.4	6.8	9.3	11.6	14	16.3	18.6
	LPM	17	26	35	44	53	62	70
	HP	11	16	21	27	30	31	30
	kW	8	12	16	20	22	23	23
2100	GPM	5.2	8.1	10.9	13.6	16.4	19.1	21.8
	LPM	20	30	41	51	62	72	83
	HP	12	19	25	31	35	36	35
	kW	9	14	18	23	26	27	26
2400	GPM	6	9.3	12.5	15.6	18.8	21.9	25.1
	LPM	23	35	47	59	71	83	95
	HP	14	21	28	35	40	41	40
	kW	11	16	21	26	30	31	30
3000	GPM	7.7	11.7	15.7	19.6	23.7	27.6	31.5
	LPM	29	44	59	74	90	104	119
	HP	18	27	35	44	50	51	51
	kW	13	20	26	33	37	38	38

PGM315 Gear Motor Performance Data:

Speed RPM	Output Torque	Gear Widths
		1″ 3500 psi		1-1/4″ 3500 psi		1-1/2″ 3300 psi		1-3/4″ 2900 psi		2″ 2500 psi
		A	B	A	B	A	B	A	B	A	B
900	in/lbs	7.1	665	8.3	830	9.6	940	10.9	965	12.2	950
900	Nm	27	75.1	32	93.8	37	106.2	41	109	46	107.3
1200	in/lbs	8.8	665	10.5	830	12.2	940	13.8	965	15.5	950
1200	Nm	33	75.1	40	93.8	46	106.2	52	109	59	107.3
1500	in/lbs	10.6	660	12.6	825	14.7	935	16.7	955	18.8	945
1500	Nm	40	74.6	48	93.2	56	105.6	63	107.9	71	106.8
1800	in/lbs	12.3	655	14.7	820	17.2	930	19.6	950	22.1	940
1800	Nm	46	74	56	92.6	65	105.1	74	107.3	84	106.2
2100	in/lbs	14	655	16.8	820	19.7	930	22.5	950	25.4	940
2100	Nm	53	74	64	92.6	75	105.1	85	107.3	96	106.2
2400	in/lbs	15.7	640	18.9	800	22.2	910	25.4	930	28.8	920
2400	Nm	59	72.3	72	90.4	84	102.8	96	105.1	109	103.9
3000	in/lbs	19	640	23	800	27.2	905	31.2	925	35.3	915
3000	Nm	72	72.3	87	90.4	103	102.3	118	104.5	134	103.4

A:Input Flow GPM/LPM; B:Output Torque IN/LBS/Nm

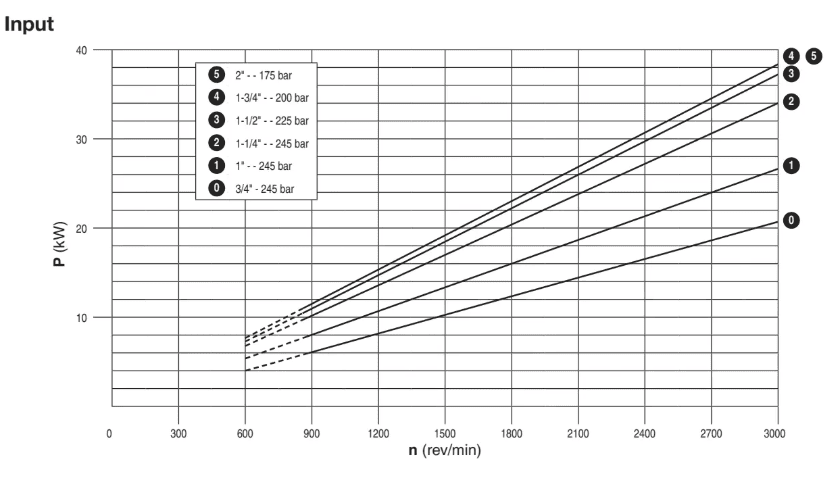

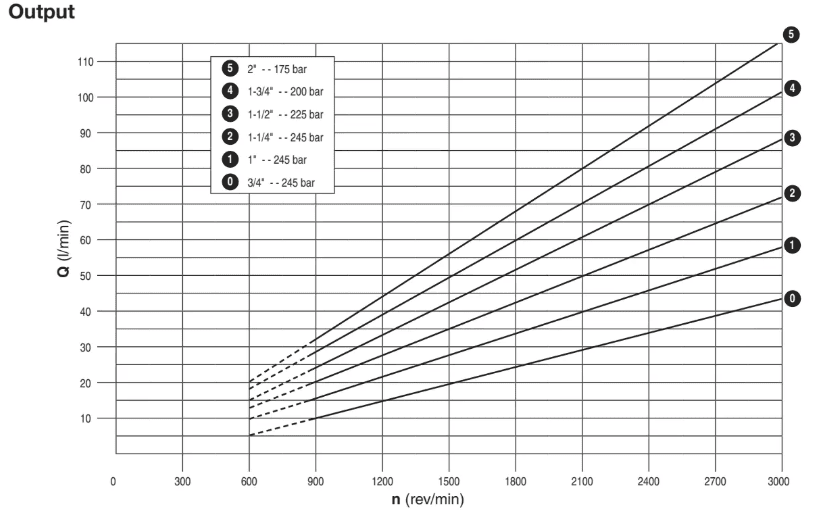

PGP/PGM315 Gear Pump&Motor Performance Charts:

Our Parker-compatible PGP315 hydraulic gear pumps and PGM315 gear motors support full customization to match your equipment requirements. Whether for replacement, repair, or new system builds, we offer flexible configurations to ensure perfect fit, reliable performance, and long service life in mobile and industrial hydraulic applications.

Customization Item	Available Options	Description
Unit Type	Pump (PGP) / Motor (PGM)	Choose hydraulic pump or motor
Displacement	7.6 – 41.0 cm³/rev	Determines flow rate of the unit
Shaft Type	Keyed shaft / Splined shaft	How the unit connects to your engine/motor
Rotation	Clockwise / Counterclockwise	Direction the unit turns when operating
Mounting Style	SAE 2‑bolt / SAE 4‑bolt	Standard mounting patterns for easy installation
Port Size & Location	Side ports / Rear ports	Inlet and outlet port positions and thread type
Port Size & Location	SAE / BSPP / Metric	Inlet and outlet port positions and thread type
Seal Material	Standard (NBR) / High‑temperature (FKM)	For different oil types and working temperatures
Configuration	Single unit / Tandem (double)	Single pump or two pumps on one shaft
Pressure Rating	Up to 3500 psi (241 bar)	Standard heavy‑duty hydraulic pressure
Drain Port	With drain / Without drain	For internal pressure relief in high‑load use

Can’t find the exact configuration you need? Contact us directly with your model number, displacement, shaft type, port location, or any special requirements. Our expert team will provide a fast, accurate quote and tailored solution for your PGP315 / PGM315 replacement. We ensure OEM-compatible quality, prompt delivery, and professional technical support to keep your equipment running smoothly.

We supply high-performance hydraulic gear pumps and motors for Parker PGP315 / PGM315 series replacement, with full modular customization options, strict quality control, and reliable after-sales service to support your heavy-duty hydraulic system demands.

Every PGP315 / PGM315 series OEM replacement is produced in line with international hydraulic standards and certified under ISO 9001 quality management system, with CE certification and RoHS compliance for global market application. Each unit is 100% tested for pressure (up to 275 bar max / 241 bar continuous), flow (up to 123.0 L/min), leakage, noise and dimensional accuracy before delivery, ensuring stable performance, low noise, high efficiency and direct drop-in replacement without modification, while matching the compact three-piece modular multi-pump configuration of the original PGP315 / PGM315 design.

12-month warranty against manufacturing defects
Professional technical support for modular configuration and model selection
Fast response to troubleshooting and after-sales inquiries
On-time delivery and reliable global shipping service
Flexible MOQ and customized labeling for distributors and importers
Customizable flange, shaft, port and seal options to match system requirements
Compatible with 7.6–41.0 cm³/rev displacement and 3,000 RPM max speed ratings

Hydraulic Gear Pump – FAQ

What is an external gear pump?

An external gear pump is a positive-displacement hydraulic pump that uses two externally meshing gears to deliver stable hydraulic flow.

What applications are external gear pumps commonly used for?

External gear pumps are widely used in construction machinery, agricultural equipment, industrial hydraulic systems, material handling, and mobile hydraulics.

What pressure range can an external gear pump handle?

Most external gear pumps operate at rated pressures up to 200–250 bar, with higher peak pressure depending on design and materials.

What displacement ranges are available?

External gear pumps are available in a wide range of displacements, typically from 1 cc/rev to over 100 cc/rev, depending on series and configuration.

What speed range is suitable for external gear pumps?

Typical operating speed ranges from 500 to 3000 RPM, depending on load conditions, oil viscosity, and pump design.

Can external gear pumps be customized?

Yes. External gear pumps can be customized in terms of displacement, pressure rating, shaft type, mounting flange, port size, and rotation direction.

Are external gear pumps interchangeable with OEM brands like Rexroth?

Many external gear pumps are designed to be dimensionally interchangeable with major OEM brands such as Rexroth, Danfoss, Eaton, and Parker.

What materials are used for external gear pumps?

Common materials include aluminum alloy housings for lightweight applications and cast iron housings for higher pressure and heavy-duty use.

What hydraulic fluids can be used?

External gear pumps are compatible with mineral hydraulic oils, HLP/HV oils, and other standard industrial hydraulic fluids.

How do I select the right external gear pump?

Selection depends on pressure rating, displacement, speed range, application requirements, and installation dimensions. Contact our engineers for technical support.
