| Pump Type | Aluminum Alloy Gear Pump |
| Displacement Range | Min 32cc/rev, Max 100cc/rev |
| Pressure Rating | Rated Pressure 20.6Mpa, Max Pressure 22.6Mpa |
| Speed Range | Min 500 RPM, Max 2500 RPM |
| Material | Aluminum Alloy |
| Mounting Type | 4 bolts frange |
| Rotation | Counter-clockwise |
| Key Features | High Performance |
| OEM Manufactured Compatibility | SHIMADZU |
| MOQ | 10 PCS |

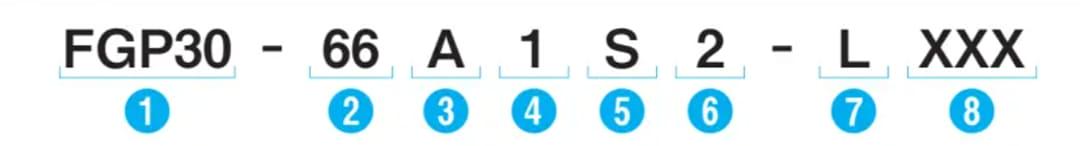

| ①Series number FGP30 series | ④Port configuration 1:flange type (SAE J518b) | ⑦Rotation viewing from shaft end L=counterclockwise R=clockwise |
| ②Size | ⑤Mounting S:4 bolts frange | 8 Code number in 3 figures |
| ③Position of ports A:side ports | ⑥Shaft end 1:SAE Spline 14 teeth |
| Size | Displacement | Rated pressure | Max.peak pressure | Speed min¹ | Inlet pressure | Mass | |||||||
| cm³ | in³ | MPa | bar | psi | MPa | bar | psi | MIN. | MAX. | kg | Ib | ||
| 32 | 32.8 | 2.001 | 20.6 | 206 | 2987 | 22.6 | 226 | 3277 | 500 | 2500 | bar -0.20-2.0 MPa -0.02~0.2 psi -2.9~29 |
13.1 | 28.82 |
| 38 | 37.4 | 2.281 | 13.5 | 29.70 | |||||||||
| 44 | 43.7 | 2.666 | 13.9 | 30.58 | |||||||||
| 52 | 51.5 | 3.142 | 14.5 | 31.90 | |||||||||
| 66 | 65.5 | 3.996 | 15.6 | 34.32 | |||||||||
| 86 | 85.8 | 5.234 | 17.3 | 38.06 | |||||||||
| 100 | 99.8 | 6.088 | 17.2 | 172 | 2494 | 20.6 | 206 | 2987 | 18.5 | 40.70 | |||

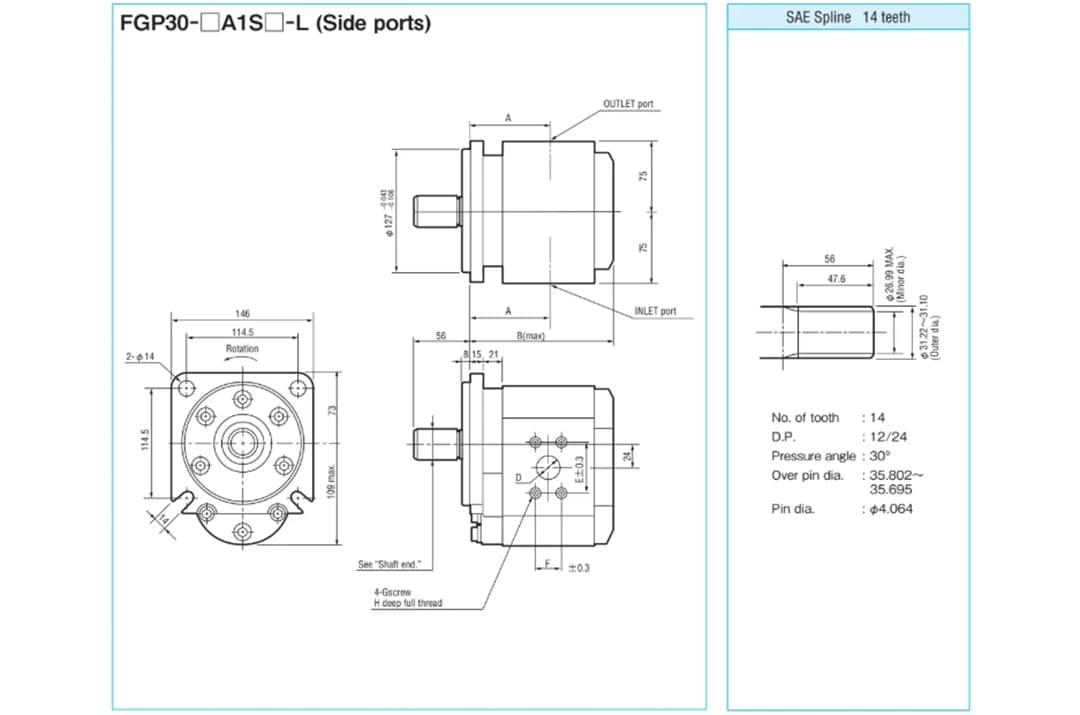

| Size | A | B | Inlet | Outlet | ||||||||
| D | E | F | G | H | D | E | F | G | H | |||
| 32 | 83.60 | 147 | 32 | 58.7 | 30.2 | M12 (P=1.75) |
20 | 25 | 52.4 | 26.2 | M10 P=1.5) |
23 |
| 38 | 85.1 | 148 | ||||||||||
| 44 | 87.1 | 152 | ||||||||||
| 52 | 89.6 | 157 | 38 | 69.9 | 35.7 | M12 (P=1.75) |
20 | |||||
| 66 | 94.1 | 166 | ||||||||||
| 86 | 103.5 | 186 | 51 | 77.8 | 42.9 | M12 (P=1.75) |
20 | 32 | 58.7 | 30.2 | M12 (P=1.75) |
28 |
| 100 | 105.1 | 195 | ||||||||||
