Danfoss Group 2 Compact Pump | SNP2/SHP2/SKP2 Series Tandem Gear Pump Replacement

Pump Type	External Gear Pump
Displacement Range	Min 3.9cc/rev, Max 25.2cc/rev
Continuous Pressure	Up to 250 bar[3625 psi]
Speed	Up to 4000 min^-1(rpm)
Material	Aluminum Alloy
Mounting Type	Flange Mount
Rotation	Clockwise ,Counterclockwise
Key Features	Compact,lightweight,quiet operation
OEM Manufactured Compatibility	Danfoss
MOQ	10 Pcs

Our aftermarket replacement gear pumps are direct interchangeable for Danfoss Group 2 compact pump (SNP2/SHP2/SKP2). Built to match OEM dimensions, pressure ratings up to 250 bar, and standard shaft/flange/port configurations, they deliver reliable performance for forklifts, agricultural machinery, construction equipment and mobile hydraulics. Cost-effective, ready for fast installation and minimal downtime.

High-quality replacement for Danfoss Group 2 compact pumps. Direct fit, same mounting and performance, ideal for maintenance and repair in mobile and industrial hydraulic systems.

Group 2 Compact Pump Features :

Compact, lightweight aluminum housing for space‑saving installation
High efficiency and low noise operation in mobile hydraulic systems
Continuous working pressure up to 250 bar for heavy‑duty applications
Fixed displacement design with stable flow output
Rugged construction for long service life and minimal maintenance
Multiple shaft, flange and port options for wide compatibility
Suitable for tandem / multi‑pump configurations

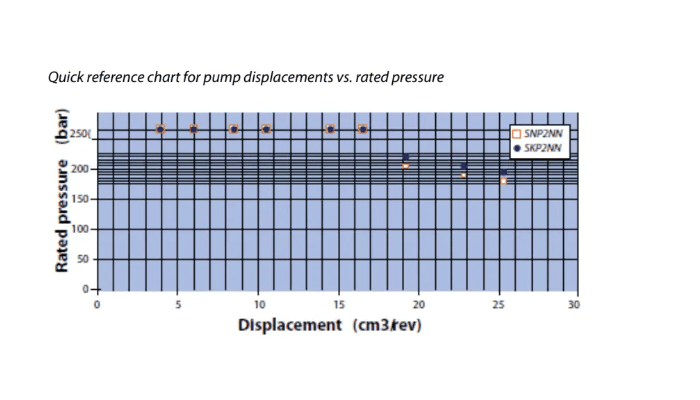

Group 2 Compact Gear Pump Displacements:

Group 2 Compact Pump Technical Data:

Frame Size		4	6	8	11	14	17	19	22	25
Displacement	cm³/rev [in³/rev]	3.9	6.0	8.4	10.8	14.4	16.8	19.2	22.8	25.2
Displacement	cm³/rev [in³/rev]	[0.24]	[0.37]	[0.51]	[0.66]	[0.88]	[1.02]	[1.17]	[1.39]	[1.54]
SKP2
Peak pressure	bar[psi]	280	280	280	280	280	280	260	230	200
Peak pressure		[4060]	[4060]	[4060]	[4060]	[4060]	[4060]	[3770]	[3335]	[2900]
Rated pressure		250	250	250	250	250	250	240	210	190
Rated pressure		[3625]	[3625]	[3625]	[3625]	[3625]	[3625]	[3480]	[3045]	[2755]
Minimum speed at 0-100 bar	min^-1(rpm)	600	600	600	500	500	500	500	500	500
Minimum speed at 100-180 bar		1200	1200	1000	800	750	750	700	700	700
Min. speed at 180 bar to rated pressure		1400	1400	1400	1200	1000	1000	1000	800	800
Maximum speed		4000	4000	4000	4000	3500	3000	3000	3000	3000
Both
Weight	kg[lb]	2.3	2.4	2.5	2.7	2.9	3.0	3.1	3.2	3.3
Weight	kg[lb]	[5.1]	[5.3]	[5.5]	[5.8]	[6.3]	[6.5]	[6.7]	[7.0]	[7.3]
Moment of inertia of rotation components	x 10⁻⁶ kg·m² [x 10⁻⁶ lb·ft²]	21.3	26.5	32.4	38.4	47.3	53.3	59.2	68.1	74.1
Moment of inertia of rotation components	x 10⁻⁶ kg·m² [x 10⁻⁶ lb·ft²]	[505]	[629]	[769]	[911]	[1122]	[1265]	[1405]	[1616]	[1758]
Theoretical flow at maximum speed	l/min [US gal/min]	15.6	24.0	33.6	43.2	50.4	50.4	57.6	68.4	75.6
Theoretical flow at maximum speed	l/min [US gal/min]	[4.1]	[6.3]	[8.9]	[11.4]	[13.3]	[13.3]	[15.2]	[18.0]	[20.0]

Use these formula to determine the nominal pump size for a specific application:

Vg	Displacement per rev.	cm³/rev[in³/rev]
pHD	Outlet pressure	bar[psi]
pND	Inlet pressure	bar[psi]
∆p	pHD – pND	bar[psi]
n	Speed	min^-1(rpm)
η_v	Volumetric efficiency
η_m	Mechanical(torque)efficiency
η_t	Overall efficiency(ηv*ηm)

Group 2 Compact Pump Common Applications:

The Group 2 compact pump is a robust, space-saving hydraulic pump ideal for mobile and industrial systems where reliable flow, high pressure performance, and compact installation are critical. Typical applications include:

Turf care & landscaping equipment: Ride-on lawn mowers, utility vehicles, and small turf care machinery
Material handling: Aerial work platforms, small forklifts, compact hydraulic lifts, and stackers
Mobile construction machinery: Mini excavators, skid-steer loaders, compactors, and utility vehicle hydraulic controls
Agricultural equipment: Compact tractors, small harvesters, precision sprayers, and fertilizer spreaders
Industrial machinery: Hydraulic power units, small injection molding machines, precision presses, and machine tool hydraulics
Waste management: Small compactors, portable recycling equipment, and compact transport vehicle hydraulics
Marine & offshore: Small deck machinery, auxiliary hydraulic power units, and compact marine hydraulic systems
Specialty vehicles: Sweepers, road maintenance vehicles, and small utility trucks

Premium aftermarket replacement for Danfoss Group 2 SNP2/SHP2/SKP2 gear pumps. Engineered to OEM specs with identical form, fit and function, supporting 250 bar continuous pressure and customizable shafts, flanges and ports. Perfect drop-in solution to reduce cost and downtime for construction, agriculture and material handling equipment.

Category	Customization Option	Description
Pump Series	SNP2 (Standard) / SHP2 (Higher Pressure) / SKP2 (SAE 11-Tooth Spline)	Standard or heavy-duty versions for different working pressure
Displacement	4.0, 6.0, 8.0, 10.8, 14.4, 16.8, 19.2, 22.8, 25.2 cc/rev	Controls oil flow – select based on your machine speed/power
Shaft Type	SAE 9-tooth spline / SAE 11-tooth spline / Straight keyed shaft / Tapered shaft	Must match your motor/gearbox connection
Mounting Flange	SAE-A 2-bolt / SAE-B 2-bolt / ISO 3019/2	Standard mounting patterns to fit your hydraulic system
Port Position & Style	Side ports / Rear ports / SAE O-ring ports / European threaded ports	Choose inlet/outlet position to fit your piping layout
Rotation	Clockwise (CW) / Counterclockwise (CCW)	Must match your engine direction
Built-in Valves	Relief valve / Priority flow divider / Without valve	For pressure protection or multiple hydraulic circuits
Seal Material	NBR (Standard) / FKM (Viton, high temp/chemical)	Standard for normal oil; Viton for high temperature or harsh oil
Configuration	Single pump / Tandem (double) pump / Triple pump	For machines needing 2 or 3 separate oil flows
Oil Drain	Internal drain / External drain	External drain recommended for high-pressure long-life use

Need a full custom group 2 compact pump model code? Contact us for a quick quote.

We supply high-performance replacement hydraulic gear pumps for Danfoss Group 2 compact pump (SNP2/SHP2/SKP2 series), with full customization options, strict quality control, and reliable after-sales service to support your hydraulic system demands.

Every Group 2 compact pump OEM replacement is produced in line with international hydraulic standards and certified under ISO 9001 quality management system, with CE certification and RoHS compliance for global market application. Each unit is 100% tested for pressure, flow, leakage, noise and dimensional accuracy before delivery, ensuring stable performance, low noise, high efficiency and direct drop-in replacement without modification.

12-month warranty against manufacturing defects
Professional technical support for model selection and installation
Fast response to troubleshooting and after-sales inquiries
On-time delivery and reliable global shipping service
Flexible MOQ and customized labeling for distributors and importers

Hydraulic Gear Pump – FAQ

What is an external gear pump?

An external gear pump is a positive-displacement hydraulic pump that uses two externally meshing gears to deliver stable hydraulic flow.

What applications are external gear pumps commonly used for?

External gear pumps are widely used in construction machinery, agricultural equipment, industrial hydraulic systems, material handling, and mobile hydraulics.

What pressure range can an external gear pump handle?

Most external gear pumps operate at rated pressures up to 200–250 bar, with higher peak pressure depending on design and materials.

What displacement ranges are available?

External gear pumps are available in a wide range of displacements, typically from 1 cc/rev to over 100 cc/rev, depending on series and configuration.

What speed range is suitable for external gear pumps?

Typical operating speed ranges from 500 to 3000 RPM, depending on load conditions, oil viscosity, and pump design.

Can external gear pumps be customized?

Yes. External gear pumps can be customized in terms of displacement, pressure rating, shaft type, mounting flange, port size, and rotation direction.

Are external gear pumps interchangeable with OEM brands like Rexroth?

Many external gear pumps are designed to be dimensionally interchangeable with major OEM brands such as Rexroth, Danfoss, Eaton, and Parker.

What materials are used for external gear pumps?

Common materials include aluminum alloy housings for lightweight applications and cast iron housings for higher pressure and heavy-duty use.

What hydraulic fluids can be used?

External gear pumps are compatible with mineral hydraulic oils, HLP/HV oils, and other standard industrial hydraulic fluids.

How do I select the right external gear pump?

Selection depends on pressure rating, displacement, speed range, application requirements, and installation dimensions. Contact our engineers for technical support.
